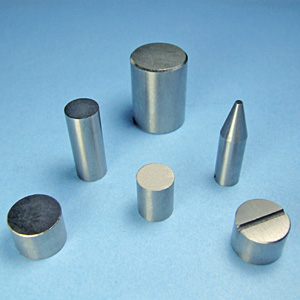

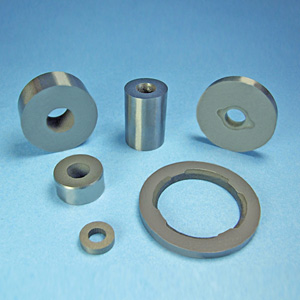

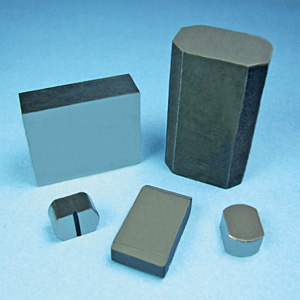

The Alnico Magnets are made primarily from aluminum, nickel, cobalt, copper, iron and sometimes titanium, There are two different manufacturing process for Alnico: Cast and Sintered Alnico. Cast Alnico can be made into intricate and complex shapes, which is not possible with other magnetic materials. It is high magnetic flux density, resistance to corrosion and excellent temperature stability, the maximum working temperature up to 600ˇć. Cast Alnico magnet is widely used in all kinds of sensors and meters, electronics, instruments, medical instruments, teaching, automobile, aviation, martial and other applications. Sintered Alnico Magnet is usually restricted to smaller sizes, it has slightly lower magnetic properties, but better mechanical strength than cast alnico magnet. Sintered Alnico magnet is widely used in all kinds of sensors, meters, controller speedometer and other applications.

>>Magnetic Properties of Cast AlNiCo Magnet:
|
Magnetic and Physical Properties of Cast AlNiCo Magnets |
|
Grade |
Br |
Hcj |
(BH) max |
USA Stand |
ICE Stand |
DIN Stand |
|
KGs |
mT |
Oe |
KA/m |
KJ/m3 |
MGOe |
MMPA |
ICE |
DE |
|
LN10 |
6.5 |
650 |
530 |
42 |
10 |
1.2 |
AlNiCo3 |
AlNiCo9/3 |
/ |
|
LNG11 |
7.2 |
720 |
480 |
37 |
11.2 |
1.4 |
AlNiCo1 |
AlNiCo8/4 |
AlNiCo120 |
|
LNG13 |
7.0 |
700 |
620 |
50 |
13 |
1.6 |
AlNiCo2 |
AlNiCo12/6 |
AlNiCo160 |
|
LNGT18 |
5.8 |
580 |
1250 |
100 |
18 |
2.2 |
AlNiCo8 |
AlNiCo17/9 |
/ |
|
LNG16 |
8.0 |
800 |
660 |
53 |
16 |
2.0 |
AlNiCo4 |
/ |
/ |
|
LNG34 |
11.8 |
1180 |
550 |
44 |
34 |
4.25 |
AlNiCo5C |
/ |
/ |
|
LNG37 |
12.0 |
1200 |
600 |
48 |
37 |
4.65 |
AlNiCo37/5 |
AlNiCo500 |
|
LNG40 |
12.2 |
1220 |
630 |
50 |
40 |
5.0 |
AlNiCo5 |
/ |
|
LNG44 |
12.5 |
1250 |
650 |
52 |
44 |
5.5 |
AlNiCo44/5 |
|
LNG52 |
13.0 |
1300 |
690 |
55 |
52 |
6.5 |
AlNiCo5DG |
AlNiCo52/6 |
AlNiCo600 |
|
LNG60 |
13.3 |
1330 |
750 |
60 |
60 |
7.5 |
AlNiCo5-7 |
/ |
AlNiCo700 |
|
LNGT28 |
10.5 |
1050 |
700 |
56 |
28 |
3.5 |
AlNiCo6 |
AlNiCo26/6 |
AlNiCo400 |
|
LNGT30 |
10.5 |
1050 |
750 |
60 |
30 |
3.75 |
|
|
|
LNGT32 |
8.0 |
800 |
1280 |
102 |
32 |
4.0 |
AlNiCo8 |
AlNiCo38/11 |
AlNiCo350 |
|
LNGT40 |
8.2 |
820 |
1400 |
112 |
40 |
5.0 |
|
LNGT44 |
8.8 |
880 |
1540 |
123 |
44 |
5.5 |
AlNiCo8B |
/ |
AlNiCo450 |
|
LNGT48A |
9.3 |
930 |
1540 |
123 |
48 |
6.0 |
AlNiCo8HE |
|
|
|
LNGT48B |
8.5 |
850 |
1650 |
132 |
48 |
6.0 |
|
|
|
LNGT60 |
9.0 |
900 |
1380 |
110 |
60 |
7.5 |
AlNiCo60/11 |
/ |
|
LNGT72 |
10.5 |
1050 |
1410 |
112 |
72 |
9.0 |
AlNiCo9 |
/ |
/ |
|
LNGT80 |
10.8 |
1080 |
1540 |
123 |
80 |
10.0 |
|
|
|
LNGT88 |
11.0 |
1110 |
1575 |
126 |
88 |
11.0 |
|
|
|
LNGT92 |
11.5 |
1150 |
1575 |
126 |
92 |
11.5 |
|
|
|
LNGT36J |
7.0 |
700 |
1750 |
140 |
36 |
4.5 |
AlNiCo8HC |
AlNiCo36/15 |
/ |
|
LNGT40J |
7.2 |
720 |
1900 |
152 |
40 |
5.0 |
|
|
|
LNGT44J |
8.2 |
820 |
1800 |
144 |
44 |
5.5 |
AlNiCo44/15 |
/ |
>>Magnetic Properties of Sintered AlNiCo Magnet:
|
Magnetic and Physical Properties of Sintered AlNiCo Magnets |
|
Grade |
Br |
HcB |
Hcj |
(BH) max |
Density |
Remark |
|
KGs |
mT |
KA/m |
Oe |
KA/m |
Oe |
KJ/m3 |
MGOe |
g/cm3 |
|
FLN8 |
5.2 |
520 |
40 |
500 |
43 |
540 |
8-10 |
1-1.25 |
6.8 |
Isotropic |
|
FLNG12 |
7.0 |
700 |
40 |
500 |
43 |
540 |
12-14 |
1.5-1.75 |
6.9 |
|
FLNG14 |
5.7 |
570 |
76 |
950 |
78 |
980 |
14-16 |
1.75-2.0 |
6.9 |
|
FLNG18 |
5.6 |
560 |
88 |
1100 |
90 |
1130 |
18-22 |
2.25-2.75 |
7.0 |
|
FLNG28 |
10.5 |
1050 |
46 |
580 |
47 |
590 |
28-33 |
3.5-4.15 |
7.3 |
Anisotropic |
|
FLNG34 |
11.0 |
1100 |
48 |
600 |
50 |
630 |
33-38 |
4.1-4.7 |
7.3 |
|
FLNG35 |
12.2 |
1220 |
50 |
630 |
51 |
640 |
35-39 |
4.4-4.9 |
7.3 |
|
FLNGT28 |
10.0 |
1000 |
56 |
700 |
57 |
710 |
28-30 |
3.5-3.8 |
7.3 |
|
FLNGT31 |
7.8 |
780 |
104 |
1300 |
106 |
1130 |
33-36 |
3.9-4.5 |
7.3 |
|
FLNGT38 |
80 |
800 |
123 |
1550 |
126 |
1580 |
38-42 |
4.75-5.3 |
7.3 |
|
FLNGT42 |
8.8 |
880 |
120 |
1500 |
122 |
1530 |
42-44 |
5.3-5.5 |
7.3 |
|
FLNGT44 |
9.0 |
900 |
120 |
1500 |
125 |
1560 |
42-44 |
5.3-5.5 |
7.3 |
|
FLNG33J |
6.5 |
650 |
136 |
1700 |
150 |
1880 |
31-36 |
4.1-4.5 |
7.3 |
|
FLNGT40J |
8.0 |
800 |
1440 |
1800 |
155 |
1950 |
40-44 |
5.0-5.5 |
7.3 |
|
FLNGT44J |
8.2 |
820 |
1520 |
1900 |
160 |
2000 |
44-48 |
5.5-60 |
7.3 | |
