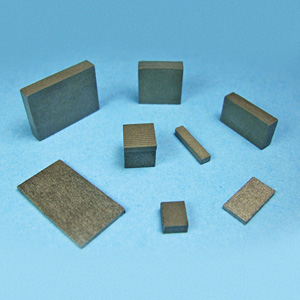

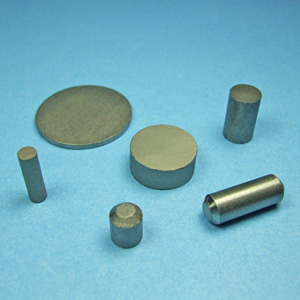

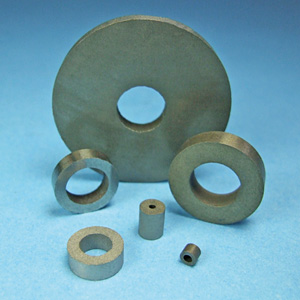

The SmCo magnet is a high performance, low temperature coefficient permanent magnet made of samarium and cobalt and other rare-earth elements. Its biggest advantage is its high working temperature---350℃,It needn't to be coated because it is difficult to be eroded and oxidized. SmCo magnet is widely used in motors、watch, transducers ,instruments, positional detector, generators, radar and other applications.

>>Magnetic Properties of Sintered SmCo Magnets:
|
Magnetic Properties of Sintered SmCo Magnets |
|
Material |
Grade |
Br |
Hcb |
Hcj |
(BH) max |
TW |
|
T |
KA/m |
KA/m |
KJ/m3 |
|
KGs |
KOe |
KOe |
MGOe |
|
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
℃ |
|
Sm1Co5
&
Sm(Pr)Co |
YX18 |
0.92 |
0.82 |
756 |
639 |
1751 |
1194 |
159 |
127 |
250℃ |
|
9.2 |
8.2 |
9.5 |
8.0 |
22.0 |
15.0 |
20 |
16 |
|
YX20 |
0.95 |
0.87 |
756 |
639 |
1751 |
1194 |
175 |
143 |
|
9.5 |
8.7 |
8.5 |
8.0 |
22.0 |
15.0 |
22 |
18 |
|
YX22 |
1.0 |
0.93 |
772 |
660 |
1751 |
1194 |
207 |
175 |
|
10 |
9.3 |
9.7 |
8.3 |
22.0 |
15.0 |
24 |
20 |
|
YX24 |
1.04 |
0.96 |
780 |
660 |
1751 |
1194 |
207 |
175 |
|
10.4 |
9.6 |
9.8 |
8.3 |
22.0 |
15.0 |
26 |
22 |
|
Sm2Co17 |
YXG24M |
1.04 |
0.96 |
772 |
318 |
955 |
398 |
207 |
175 |
350℃ |
|
10.4 |
9.6 |
9.7 |
4.0 |
12.0 |
5.0 |
26 |
22 |
|
YXG24 |
1.04 |
0.96 |
780 |
660 |
≥1194 |
207 |
175 |
|
10.4 |
9.6 |
9.8 |
8.3 |
≥15.0 |
26 |
22 |
|
YXG24H |
1.04 |
0.96 |
780 |
660 |
≥1592 |
207 |
175 |
|
10.4 |
9.6 |
9.8 |
8.3 |
≥20.0 |
26 |
22 |
|
YXG26M |
1.07 |
1.0 |
796 |
318 |
955 |
398 |
223 |
191 |
|
10.7 |
10.0 |
10 |
4.0 |
12.0 |
5.0 |
28 |
25 |
|
YXG26 |
1.07 |
1.0 |
820 |
677 |
≥1194 |
223 |
191 |
|
10.7 |
10.0 |
10.3 |
8.5 |
≥15.0 |
28 |
25 |
|
YXG26H |
1.07 |
1.0 |
820 |
677 |
≥1592 |
223 |
191 |
|
10.7 |
10.0 |
10.3 |
8.5 |
≥20. |
28 |
25 |
|
YXG28M |
1.10 |
1.04 |
796 |
318 |
955 |
398 |
239 |
207 |
|
11.0 |
10.4 |
10.0 |
4.0 |
12.0 |
5.0 |
30 |
26 |
|
YXG28 |
1.10 |
1.04 |
820 |
577 |
≥1194 |
239 |
207 |
|
11.0 |
10.4 |
10.3 |
8.5 |
≥15.0 |
30 |
26 |
|
YXG28H |
1.10 |
1.04 |
820 |
677 |
≥1592 |
239 |
207 |
|
11.0 |
10.4 |
10.3 |
8.5 |
≥20.0 |
30 |
26 |
|
YXG30M |
1.12 |
1.07 |
796 |
318 |
955 |
398 |
247 |
223 |
|
11.2 |
10.7 |
10.0 |
4.0 |
12.0 |
5.0 |
31 |
28 |
|
YXG30 |
1.12 |
1.07 |
820 |
677 |
≥1194 |
247 |
223 |
|
11.2 |
10.7 |
10.3 |
8.5 |
≥15.0 |
31 |
28 |
|
YXG32M |
1.15 |
1.09 |
796 |
318 |
955 |
398 |
262 |
238 |
|
11.5 |
10.9 |
10.0 |
4.0 |
12.0 |
5.0 |
32 |
29 |
|
YXG32 |
1.15 |
1.09 |
820 |
677 |
≥955 |
262 |
238 |
|
11.5, |
10.0 |
10.3 |
8.5 |
≥12.0 |
32 |
29 |
|
Low Temp. Coeff Sm2Co17 |
YXG22LT |
1.0 |
0.93 |
756 |
677 |
≥1194 |
191 |
150 |
350℃ |
|
10.0 |
9.3 |
9.5 |
8.5 |
≥15.0 |
26 |
22 |
|
YXG24LT |
1.04 |
0.96 |
756 |
677 |
≥1194 |
223 |
191 |
|
10.4 |
9.6 |
9.5 |
8.5 |
≥15.0 |
26 |
22 |
|
YXG26LT |
1.07 |
1.0 |
812 |
677 |
≥1433 |
223 |
191 |
|
10.7 |
10.0 |
10.2 |
8.5 |
≥18.0 |
28 |
25 | |
