The Magnetic Pot systems, that we can obtain the best performance during the lifting operations and they cut down at the minimum the mechanical sizes. Another advantage of these systems is the possibility of fixing by through holes, threaded hole or threaded bush. There are many different types and sizes of Magnetic Pot.
>> Types and Sizes of NdFeB Magnetic Pot:
|
Model(PMYP-A) |
D |
D1 |
D2 |
H |
Attraction(Kg) |
|
PMyp-A16 |
16 |
3.5 |
6.5 |
5 |
5 |
|
PMyp-A20 |
20 |
4.5 |
8.6 |
7 |
6 |
|
PMyp-A25 |
25 |
5.5 |
10.4 |
8 |
14 |
|
PMyp-A32 |
32 |
5.5 |
10.4 |
8 |
25 |
|
PMyp-A36 |
36 |
6.5 |
12 |
8 |
29 |
|
PMyp-A42 |
42 |
6.5 |
12 |
9 |
37 |
|
PMyp-A48 |
48 |
8.5 |
16 |
11.5 |
68 |
|
PMyp-A60 |
60 |
8.5 |
16 |
15 |
112 |
|
PMyp-A75 |
75 |
10.5 |
19 |
18 |
162 |
|

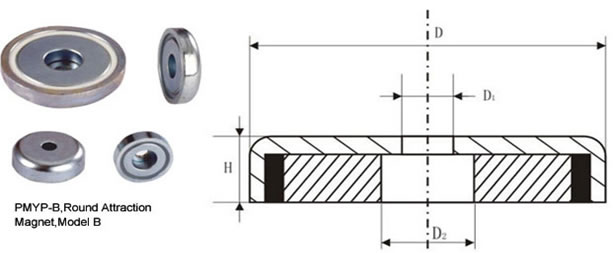

Model(PMYP-B) |
D |
D1 |
D2 |
H |
Attraction(Kg) |
|
PMyp-B16 |
16 |
3.5 |
6.5 |
5 |
4 |
|
PMyp-B20 |
20 |
4.5 |
8 |
7 |
6 |
|
PMyp-B25 |
25 |
5.5 |
9 |
8 |
14 |
|
PMyp-B32 |
32 |
5.5 |
9 |
8 |
23 |
|
PMyp-B36 |
36 |
6.5 |
11 |
8 |
29 |
|
PMyp-B42 |
42 |
6.5 |
11 |
9 |
32 |
|
PMyp-B48 |
48 |
8.5 |
15 |
11.5 |
63 |
|
PMyp-B60 |
60 |
8.5 |
15 |
15 |
95 |
|
PMyp-B75 |
75 |
10.5 |
18 |
18 |
155 |
|

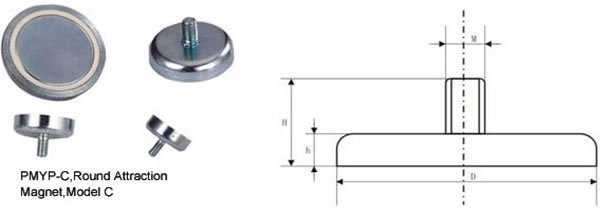

Model(PMYP-C) |
D |
M |
H |
h |
Attraction(Kg) |
|
PMyp-C16 |
16 |
4 |
13 |
5 |
5.5 |
|
PMyp-C20 |
20 |
4 |
15 |
7 |
9 |
|
PMyp-C25 |
25 |
5 |
17 |
8 |
22 |
|
PMyp-C32 |
32 |
6 |
18 |
8 |
34 |
|
PMyp-C36 |
36 |
8 |
18 |
8 |
41 |
|
PMyp-C42 |
42 |
8 |
20 |
9 |
68 |
|
PMyp-C48 |
48 |
8 |
24 |
11.5 |
81 |
|
PMyp-C60 |
60 |
10 |
30 |
15 |
113 |
|
PMyp-C75 |
75 |
10 |
34 |
18 |
164 |
|

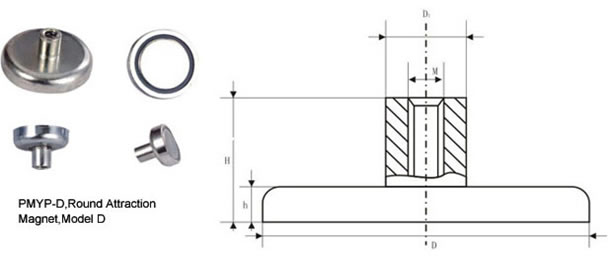

Model(PMYP-D) |
D |
M |
D1 |
H |
h |
Attraction(Kg) |
|
PMyp-D16 |
16 |
4 |
6 |
13 |
5 |
5.5 |
|
PMyp-D20 |
20 |
4 |
8 |
15 |
7 |
9 |
|
PMyp-D25 |
25 |
5 |
10 |
17 |
8 |
22 |
|
PMyp-D32 |
32 |
6 |
10 |
18 |
8 |
34 |
|
PMyp-D36 |
36 |
8 |
1- |
18 |
8 |
41 |
|
PMyp-D42 |
42 |
8 |
12 |
20 |
9 |
68 |
|
PMyp-D48 |
48 |
8 |
12 |
24 |
11.5 |
81 |
|
PMyp-D60 |
60 |
10 |
14 |
30 |
15 |
113 |
|
PMyp-D75 |
75 |
10 |
14 |
33 |
18 |
164 |
|

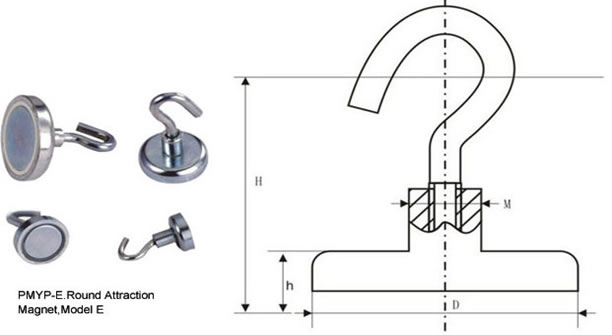

Model(PMYP-E) |
D |
M |
H |
Attraction(Kg) |
|
PMyp-E16 |
16 |
4 |
37 |
11 |
|
PMyp-E20 |
20 |
4 |
45 |
21 |
|
PMyp-E25 |
25 |
4 |
47 |
37 |
|
PMyp-E32 |
32 |
4 |
48 |
56 |
|
PMyp-E36 |
36 |
4 |
48 |
68 |
|
PMyp-E42 |
42 |
5 |
60 |
97 |
|
PMyp-E48 |
48 |
5 |
64 |
154 |
|
PMyp-E60 |
60 |
6 |
70 |
282 |
|
PMyp-E75 |
75 |
6 |
76 |
560 | |
