Magnetic Filter

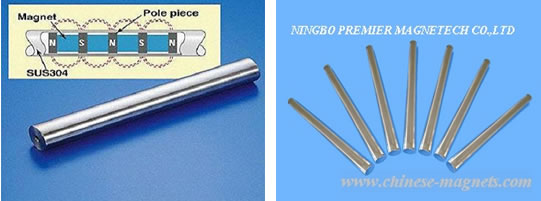

>> Magnetic Filter Bar:

Round Shape	Diameter (mm)	Length (mm)	Round Shape	Diameter (mm)	Length (mm)
PREMAG-BR-100	25	100	PREMAG-BR-600	25	600
PREMAG-BR-150	25	150	PREMAG-BR-650	25	650
PREMAG-BR-200	25	300	PREMAG-BS-700	25	700
PREMAG-BR-250	25	250	PREMAG-BR-750	25	750
PREMAG-BR-300	25	300	PREMAG-BR-800	25	800
PREMAG-BR-350	25	350	PREMAG-BR-850	25	850
PREMAG-BR-400	25	400	PREMAG-BR-900	25	900
PREMAG-BR-450	25	450	PREMAG-BR-950	25	950
PREMAG-BR-500	25	500	PREMAG-BR-1000	25	1000
PREMAG-BR-550	25	550	PREMAG-BR-1500	25	1500
Square Shape	Square (mm)	Length (mm)	Square Shape	Diameter (mm)	Length (mm)
PREMAG-BS-100-01	25x25	100	PREMAG-BS-100-02	50x50	100
PREMAG-BS-200-01	25x25	200	PREMAG-BS-200-02	50x50	200
PREMAG-BS-300-01	25x25	300	PREMAG-BS-300-02	50x50	300
PREMAG-BS-400-01	25x25	400	PREMAG-BS-400-02	50x50	400
PREMAG-BS-500-01	25x25	500	PREMAG-BS-500-02	50x50	500
PREMAG-BS-600-01	25x25	600	PREMAG-BS-600-02	50x50	600
PREMAG-BS-700-01	25x25	700	PREMAG-BS-700-02	50x50	700
PREMAG-BS-800-01	25x25	800	PREMAG-BS-800-02	50x50	800
PREMAG-BS-900-01	25x25	900	PREMAG-BS-900-02	50x50	900
PREMAG-BS-1000-01	25x25	1000	PREMAG-BS-1000-02	50x50	1000
PREMAG-BS-1500-01	25x25	1500	PREMAG-BS-1500-02	50x50	1500

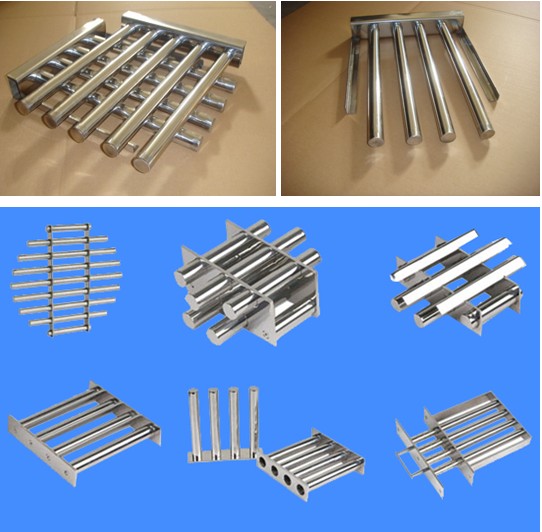

>> Grate Magnets/ Grid Magnets

Round Version	Diameter (mm)	Number for bar	Round Version	Diameter (mm)	Number for bar
Grate-R-100	100	2	CMGrate-R-400	400	8
Grate-R-150	150	3	CMGrate-R-450	450	9
Grate-R-200	200	4	CMGrate-R-500	500	10
Grate-R-250	250	5	CMGrate-R-550	550	11
Grate-R-300	300	6	CMGrate-R-600	600	12
Grate-R-350	350	7	CMGrate-R-800	800	16
Square Version	Square A=B(mm)	Number for bar	Square Version	Square A=B(mm)	Number for bar
CMGrate-S-100	100	2	CMGrate-S-400	400	8
CMGrate-S-150	150	3	CMGrate-S-450	450	9
CMGrate-S-200	200	4	CMGrate-S-500	500	10
CMGrate-S-250	250	5	CMGrate-S-550	550	11
CMGrate-S-300	300	6	CMGrate-S-600	600	12
CMGrate-S-350	350	7	CMGrate-S-800	800	16

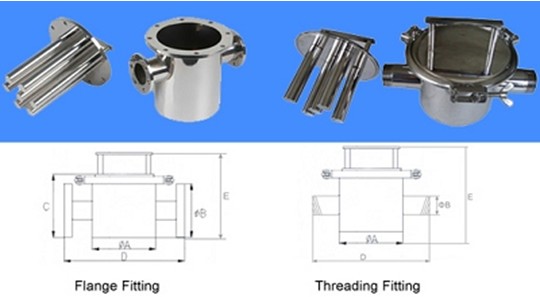

>> Liquid Line Magnetic Trap:

Flange Fitting	A	B	C	D=E	Number of Bars
PREMAG-F-150	150	50	150	300	5
PREMAG-F-200A	200	50	200	350	7
PREMAG-F-200B	200	75	200	350	7
PREMAG-F-250A	250	50	250	400	9
PREMAG-F-250B	250	75	250	400	9
PREMAG-F-250C	250	100	250	400	9
PREMAG-F-300A	300	50	300	450	9
PREMAG-F-300B	300	75	300	450	9
PREMAG-F-300C	300	100	300	450	9
Threading Fitting	A	B	D=E		Number of Bars
PREMAG-T-150	150	50	300		5
PREMAG-T-200A	200	50	350		7
PREMAG-T-200B	200	75	350		7
PREMAG-T-250A	250	50	400		9
PREMAG-T-250B	250	75	400		9
PREMAG-T-250C	250	100	400		9
PREMAG-T-300A	300	50	450		9
PREMAG-T-300B	300	75	450		9
PREMAG-T-300C	300	100	450		9
